LG-52EB
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
| Quantity: | |
Description:

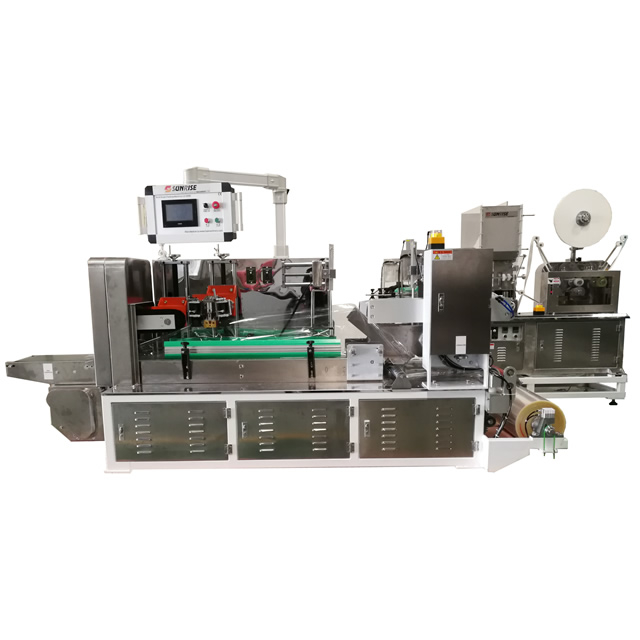

Full Automatic Bulk (group) Straw Packing Machine LG-52EB is our latest model developed in 2019 according to the requirements of U.K customers. The design adopts segmentation and sorting to make the packaging more tidy and beautiful，the work process easier and easier to operate.
Features:

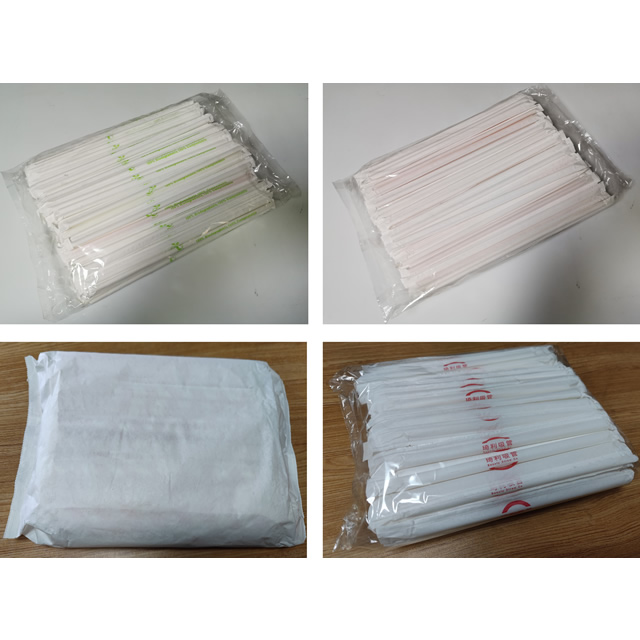

1- Packing range is wide 50-500 pcs/bag, the only machine in China that can pack 500 pcs/bag
2- Sorting in stages, the straw more tidy.
3- The whole machine is controlled by PLC, and the operation is stable.
4-Our machines are designed according to CE requirements, and protective covers are installed for all dangerous places.
Technic data：
Model | LG-52EB | |
Package type | Three side sealing (Pillow type) | |
Capacity | Φ4～6mm | ≦500pcs/bag |
Φ7～12mm | ≦250-400pcs/bag | |
Straw specification | Out diameter | Ф4-12mm |
Length | 150-245mm | |
Packing speed | 10-12 bags/min. (depends on the straw out diameter) | |
Packing film thickness | 20μ-30μ | |
Max film width | 300-850mm | |
Max dia.of film | 400mm | |
Paper core dia. | 76mm | |
Total power | 2.5KW | |
Power supply | 220V,50hz/60hz,Single Phase | |
Control type | PLC | |
Layout dimension (LxWxH) | 3120x2722x1700mm | |
Package dimension (LxWxH) | 3170x1270x1850m +2160x750x1460mm | |
Net weight | 900KGS | |
