LG-A11(50) Full Automatic Series
Sunrise Machinery
8477209000
| Color: | |
|---|---|
| Material: | |
| Out Diameter: | |
| Length: | |
| Quantity: | |
Description:

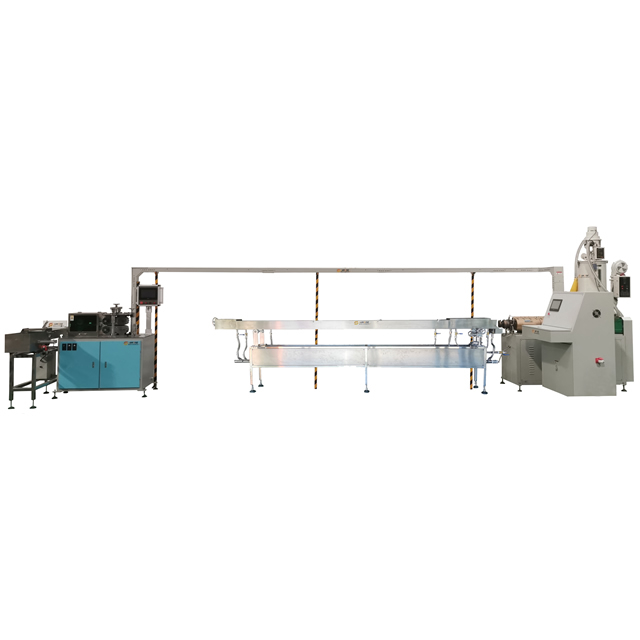

Full Automatic PLA Straw Extrusion Machine LG-A series is our most advanced machines for making the PLA straw.We have applied a lot of new technologies,such as PLC control system ,water constant temperature system, nanometre infrared heater ,automatic air regulator,keep it full automatically,high speed,and saving the power.
Features:
1-Full automatic adjust the length and diameter of straw (set on PLC screen).
2-Water constant temperature system makes the quality of PLA straw.
3-Fast heating and saving the power.
4-Most advanced PLA straw extrusion machine.
Technic data：
Model | LG-A11(50) | LG-A12(50) | LG-A13(50) |
Material Auto Loader | |||
Feeding capacity | 350kgs/h | ||
Power | 1100W | ||
Static wind pressure | 1500mmAq | ||
Filter | Ø185X115H | ||
Volume of Hopper | 6L | ||
Inner diameter of feeding pipe | Ø38 | ||
Hopper Dryer | |||
Capacity | 50kgs | ||
Power of heating | 4800W | ||
Power of blower | 200W | ||
PLA Straw Extruder | |||
Model | LG-A11(50) | LG-A12(50) | LG-A13(50) |
Diameter of screw | 50mm | 50+25mmx1 | 50+25mmx2 |
No. of screw | 1 pcs | 2 pcs | 3 pcs |
No.of colour | 1 | 2 | 3 |
Type of screw | Special for PLA | ||
Raw material | PLA / PBAT / PHA compound resin | ||
L:D | 33:1 or 28:1 | 33:1 or 28:1 & 20:1 | 33:1 or 28:1 & 20:1 |
Section of temperature controlling | 5 | 8 | 11 |
Max.extrusion capacity | 30-48kgs/h | ||
Max.speed | 800-1200pcs/min. | ||
Inner dia.of straw | φ2- φ 12mm | ||
Thickness | 0.1-1mm | ||
Length | 100-265mm | ||
Length tolerance | ± 0.1 -1mm | ||
Main motor power | 11KW Servo motor | ||
Water Cooling Bath | |||
Material of tank | SS304 | ||
Length | 4000mm | ||
No. of pulley | 3 | ||
Air Dryer | |||
Type of air dryer | Super Air Dryer | ||
No. of air dryer | 1 | ||
Drying rate: | ≥96% | ||
Air consumption | 394L/Min. | ||
Material | Aluminium alloy | ||
Air Compressor | Air Compressor | ||
Capacity | 5HP | ||
Power | 4KW | ||
Exhaust pressure | 0.8Mpa | ||
Displacement | 0.5m3/min | ||
Rotating speed | 1480rpm | ||
Straw Hauling And Cutter | |||
Power | 1.5KW +5.5KW (All Servo motor) | ||
Cutting speed | >1200pcs/min. | ||
Cutting end | 90/90 , 90/60 | ||
L Type Gathering Belt | |||
Power | 0.4KW | ||
Speed adjustment | Delta inverter | ||
Full Line Information | |||
Total power | 29kw | 31.5kw | 35kw |
Power supply | 380V,50HZ/60HZ,3 Ph, 415V,50hz,3 Ph,440V,50hz,3 Ph, 220V,60hz,3 Ph | ||
Layout dimension (LxWxH) | 12x2.5x3m | 12x3x3m | 12x3.5x3m |
Water Constant Temperature System | |||
Water chiller | 3HP/6800Kacl/h/4.4-38℃ Total power:3KW | ||
Heater with controller | 10KW | ||
