LG-56S
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
| Quantity: | |
Description:

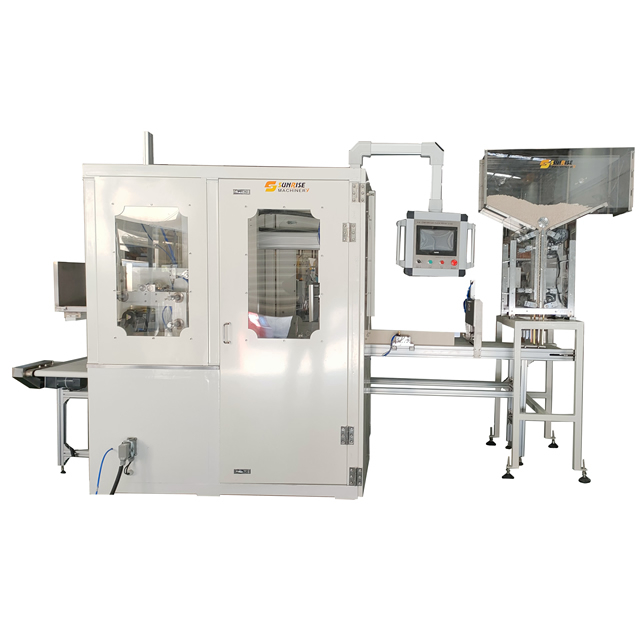

Bulk (group) Straw Paper Box Packing Machine LG-56S is a machine developed by us according to the market demand for paper packaging boxes. The modified machine needs to be used in conjunction with the Individual Straw Packing Machine to pack the already-packed straws. The whole machine is automatic except for the manual close of box after filling the straw. At the same time, it also can be boxed with a straw without packaging according to market demand. Meet the current ban on plastics requirements.
Features:
1-Packing range is wide 50-300 pcs/box.
2-Sorting in stages, the straw more tidy.
3-The whole machine is controlled by PLC, and the operation is stable.
4-Automatic suction box, automatic open box, automatic box placement, automatic counting, automatic unloading
5-Our machines are designed according to CE requirements, and protective covers are installed for all dangerous places.
Technic data：
Model | LG-56S for without package straw | |
Package type | Paper box | |
Capacity | Φ4～6mm | ≦300pcs/box |
Φ7～12mm | ≦50-100pcs/box | |
Straw specification | Out diameter | Ф4-12mm |
Length | 150-220mm | |
Packing speed | 5-7 boxes/min. (depends on the quantity) | |
Main power | 0.75kw | |
Conveyor belt power | 120w*2 sets | |
Push device power | 120W | |
Power supply | 220V,50hz/60hz,Single Phase | |
Control type | PLC | |
Layout dimension (LxWxH) | 3386x1856x2025mm | |
Package dimension (LxWxH) | 1900x1900x1850mm +2400x520x2100mm | |
Net weight | 680KGS | |
