LG-P810
SUNRISE MACHINERY
8441809000
| Quantity: | |
|---|---|

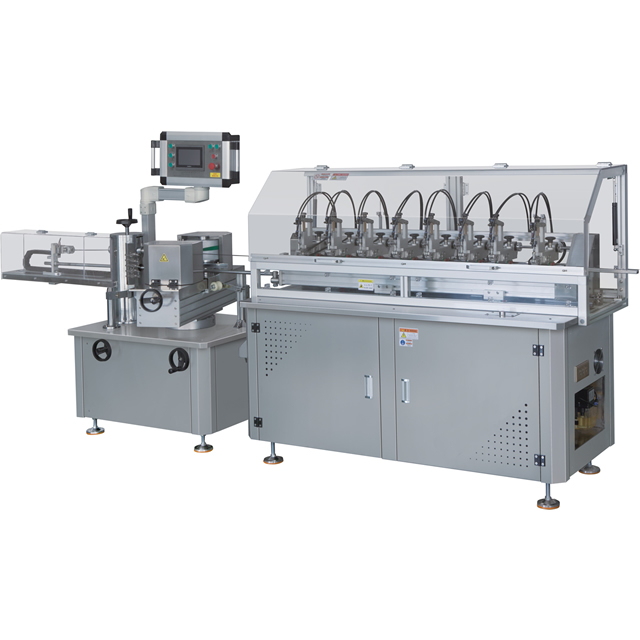

High speed paper straw making machine (8pcs blades ) LG-P810
1.Paper layer: 3 layers
2. Paper Straw OD: 4.2-13mm
3. Highest Speed: 80m/min.
4. Stable Speed: 65-70m/min.
5. Power Required : 7kw
6. Cutting Blades : 8 pieces

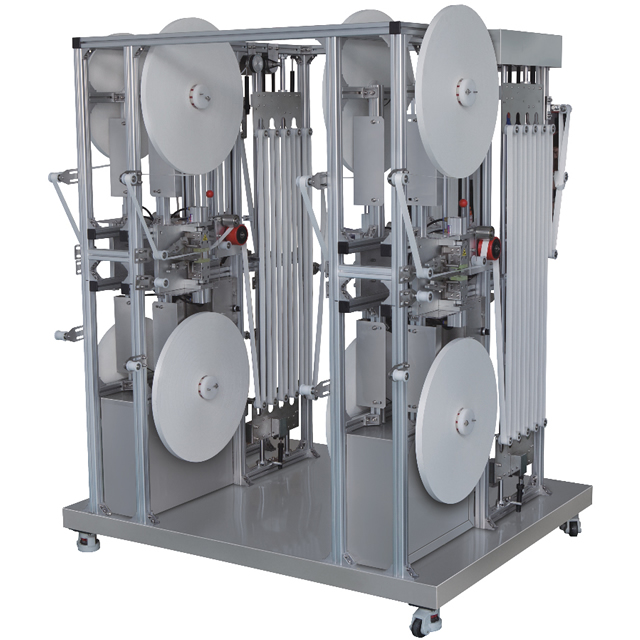

7. Integral paper & glue stand with auto paper connection & glue heater
Technical Parameter | Control System | |||
Paper Layer | 4 layers (can make both 3 and 4 layers) | Total Power Required | 8.0kw | |
Paper Straw OD | 4.2-13mm | Motion Controller | Panel Master | |
Paper Straw ID | 3.8-12.3mm | Operating Panel | Panel Master | |
Highest Speed | 80m/min. | Language | English | |
Stable Speed | 65-75m/min. (related to straw size & material) | Inverter | Schneider | |
Winding Nose | Two noses single belt | Electric Components | Schneider | |
Machine & parts | 304 Stainless steel | Pneumatic Components | AirTac | |
Length fixing | Encoder | Servo Motor | Schneider | |
Speed Control | By Inverter | Servo Driver | Schneider | |
Cutting System | Multi-blades; 8 pcs online | Screw Rod | Shangyin | |
Synchronism tracking cutting system | Servo motor synchronism tracking | Slider | Shangyin | |
Bearing | Haerbin | |||
Straw Collecting | Automatically | Power Supply | 380V / 3phases / 50 Hz | |
Equipped with | Safety Covers | Configuration | ||
Operator | 1 person | Paper Reel Stand | 3 Layers (auto paper splicer) | |
Working Air Pressure | 0.6Mpa | Gluing Unit | 3 Layers (with heater) | |
Measurement & Weight | Winding Belt | 5 Pieces | ||
Measurement | 3500*1500*1200mm | Mandrel Shaft | 3 Sets | |
Working Space | 8000*5000mm | Cutting Blade | 14 Pieces | |
Weight | Around 2100kgs | Useful Tool | 1 Set | |
