LG-E13(55) Economic Series
Sunrise Machinery
8477209000
| Material: | |
|---|---|
| Length: | |
| Color: | |
| Quantity: | |
Description:

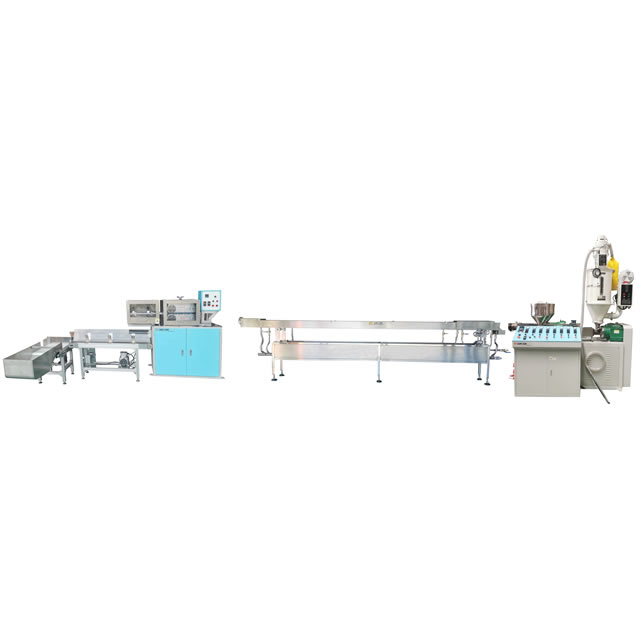

PLA Straw Extrusion Machine LG-E Economic series is our standard machine for making the PLA straw.The machine are comprised by PLA straw extruder,Water cooling bath, 1 set super air knifes dryer,Straw hauling and cutter,L type gathering belt,and others accessorial machines,such as:Hopper dryer with material auto loader ,Air compressor, Water cooling chiller and Water constant temperature system.
Features:
1-It is popular model for making the PLA straw ,and more cost effective.
2-Water constant temperature system makes the quality of PLA straw.

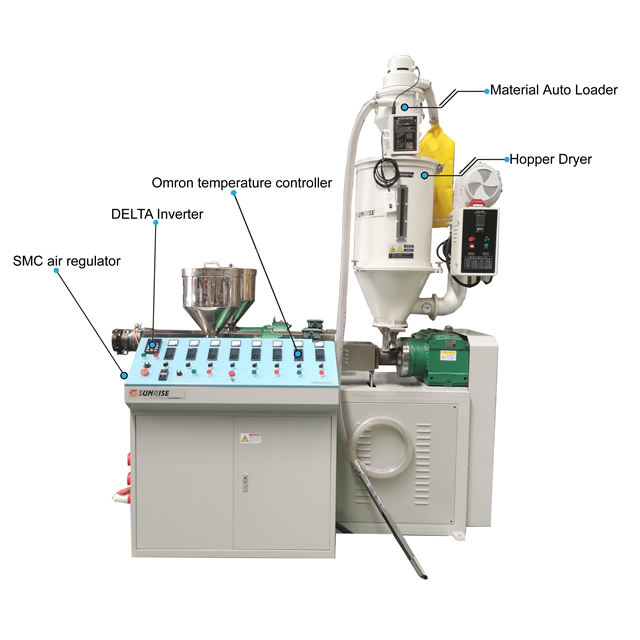

3-Omron temperature controller makes the temperature more precise ,SMC air regulator makes the straw diameter more precise.
Technic data：
Model | LG-E13(55) |
Material Auto Loader | |
Feeding capacity | 350kgs/h |
Power | 1100W |
Static wind pressure | 1500mmAq |
Filter | Ø185X115H |
Volume of Hopper | 6L |
Inner diameter of feeding pipe | Ø38 |
Hopper Dryer | |
Capacity | 50kgs |
Power of heating | 4800W |
Power of blower | 200W |
PLA Straw Extruder | |
Model | LG-E13(55) |
Diameter of screw | 55mm+25mmx2 |
No. of screw | 3 pcs |
No.of colour | 1,2,3 |
Type of screw | Special for PLA |
Raw material | PLA / PBAT / PHA compound resin |
L:D | 33:1 or 28:1+20:1 |
Section of temperature controlling | 11 |
Max.extrusion capacity | 40-60kgs/h |
Max.speed | 600-700pcs/min. |
Inner dia.of straw | φ2- φ 12mm |
Thickness | 0.1-1mm |
Length | 100-265mm |
Length tolerance | ± 0.1 -1mm |
Main motor power | 18.5KW |
Water Cooling Bath | |
Material of tank | SS304 |
Length | 4000mm |
No. of pulley | 3 |
Air Dryer | |
Type of air dryer | Super Air Dryer |
No. of air dryer | 1 |
Drying rate | ≥96% |
Air consumption | 394L/Min. |
Material | Aluminium alloy |
Air Compressor | |
Capacity | 5HP |
Power | 4KW |
Exhaust pressure | 0.8Mpa |
Displacement | 0.5m3/min |
Rotating speed | 1480rpm |
Straw Hauling And Cutter | |
Power | 0.75KWx2pcs |
Cutting speed | >750pcs/min. |

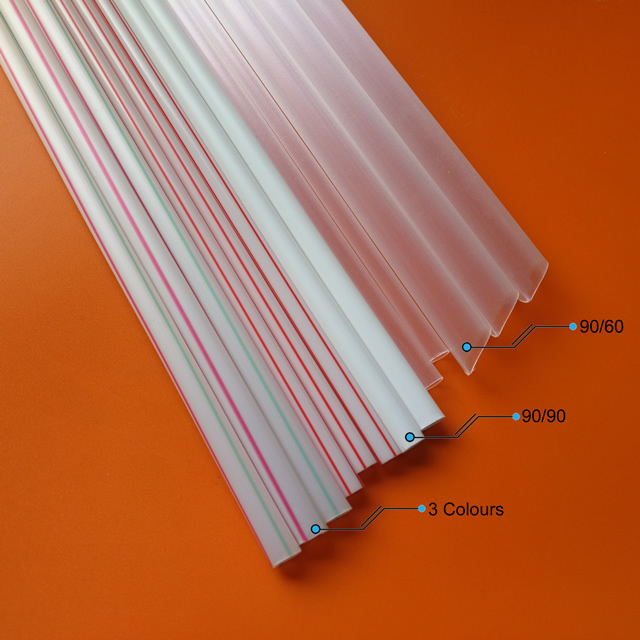

Cutting end | 90/90 , 90/60 |
L Type Gathering Belt | |
Power | 0.4KW |
Speed adjustment | Delta inverter |
Full Line Information | |
Total power | 37kw |
Power supply | 380V,50HZ/60HZ, 3 Ph, 415V,50hz,3 Ph, 440V,50hz,3 Ph, 220V,60hz,3 Ph |
Layout dimension (LxWxH) | 12.5x3.5x3m |
Water Constant Temperature System | |
Water chiller | 3HP/6800Kacl/h/4.4-38℃ Total power:3KW |
Heater with controller | 10KW |
