LG-46
Sunrise Machinery
8477800000
| Quantity: | |
|---|---|
Description:

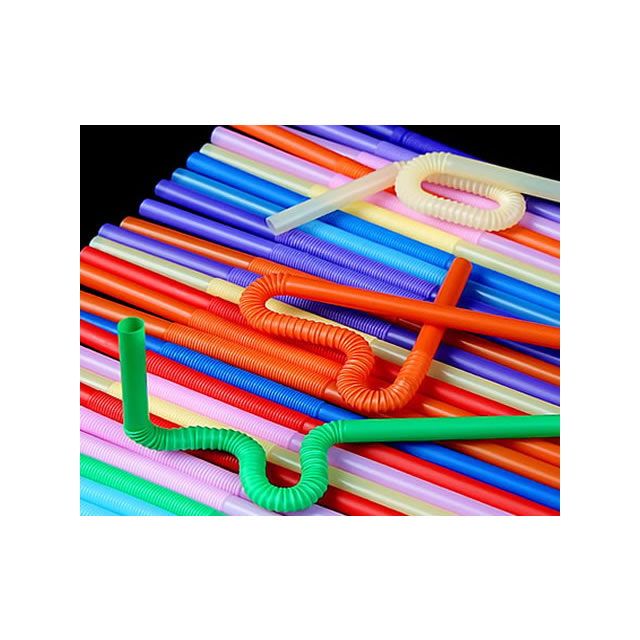

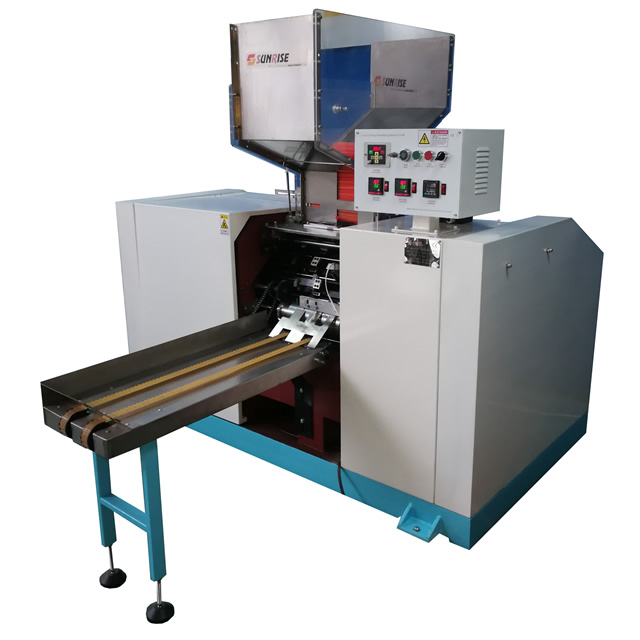

Full Automatic Artistic Drinking Straw Making Machine LG-46 developed by us. With the raw material formula we summed up independently, the artistic drinking Straw produced is straight, and the knurling effect is perfect, high efficiency and labor saving.
Features:
1-High production capacity:120-170pcs/min.
2-One labour can operate 2 machines
3-With automatic counting and batch alarm.
4-Automatic stop when the straw have errors

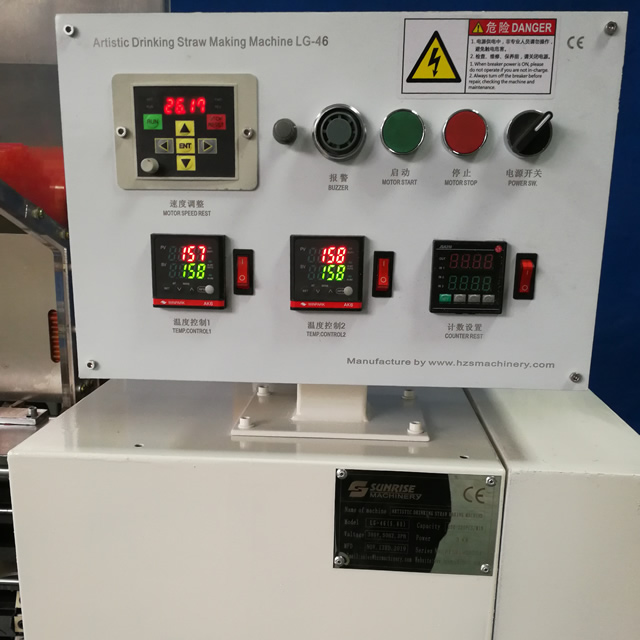

5-More safety-the machine with watch windows and back side controller and emergency switch
6-The inverter brand is DELTA
Technic data:
Model | LG-46 | |||
No. of bending groups | 18 bending groups | |||
Driving motor | 1.5kw (control by DELTA inverter) | |||
Capacity | 120-170pcs/min. | |||
Specification of straw | Inner diameter:5.6mm | |||
| No.of knurling teeths:58 | ||||
| Thickness of straw:0.16-0.2±0.02mm | ||||
Length of straight straw:300-340mm | ||||
| Length of flexible straw:250-260mm | ||||
| Top section part:40-48mm | ||||
| Length of Flexible part:55mm | ||||
The others specification can be special made. | ||||
Dimension of machine | 1600x2000x1900mm | |||
| Dimension of package | 1750X1210X1690mm | |||
Weight of machine | 1300kgs | |||
