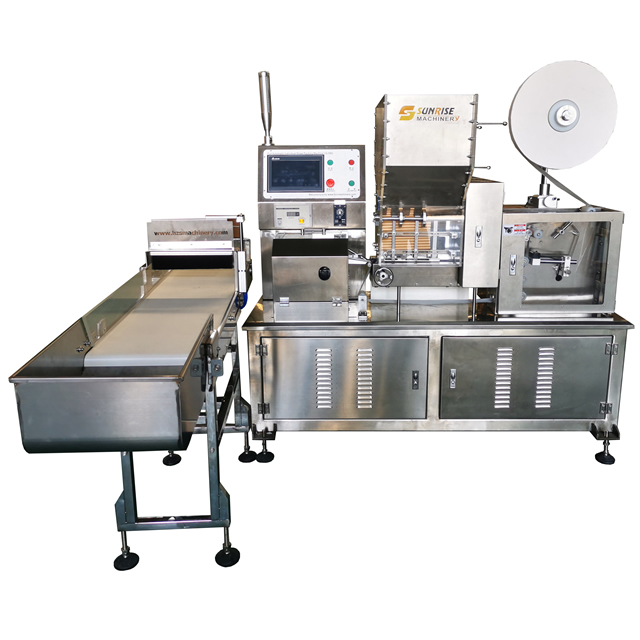

Full Automatic Individual Straw Packing Machine LG-58S

※Most advanced individual straw packing machine
※Best quality individual straw packing machine
※Full automatic individual straw packing machine
※Servo type individual straw packing machine
※Stable running individual straw packing machine
※Straw Packing Machine Is Made Of Stainless Steel
  • LG-58S
  • Sunrise Machinery
  • 8422400090
Out Diameter:
Length:
Quantity:

Description:

Due to the COVID-19, our engineers cannot go abroad for after-sales and trainning. Therefore, our customers, including ourselves, urgently need a fully automatic machine that can realize remote debugging and is simple and easy to operate. For this reason, our team concentrated all efforts to develop the LG-58S model (None printing). Ordinary individual straw packaging machines need to change the sealing and cutting wheels when changing specifications, but all the lengths of LG-58S do not need to change the sealing and cutting wheels, only need to be set on the PLC touch screen, easy to operate. This machine intensively applies many of our advanced technologies, and is a truly automatic and intelligent individual straw packaging machine. Even if you haven't operated a similar machine before, don't worry, as long as you set the parameters of the touch screen, you can control this machine too.

Features:

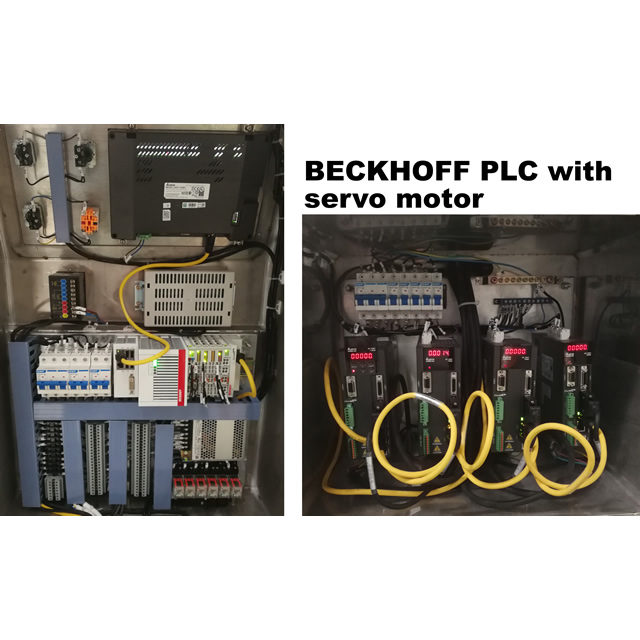

1-The machine control system adopts German PLC and servo motor , which ensures the multi-function and high automation of the machine. All settings are operated on the PLC touch screen, which is a true Full Automatic Straw Packaging Machine.

2-The length of the straw packaging can be adjusted arbitrarily without changing any sealing and cutting wheel or the cutting position of the sealing and cutting wheel.

3-The machine provides 2 packaging models: non-printing or pre-printing.

4-Automatic tension control device.

5-The paper roller base adopts a screw slide table, which is stable and easy to operate.

6-The height of the ink box is adjustable.

7-The machine frame is made of stainless steel SUS304, which is clean, beautiful and healthy

8-Our machines are designed according to CE requirements, and protective covers are installed for all dangerous places.

Technic data

Model

LG-58S

No. of printing colors

None & Pre-printing paper

Capacity

Max. 800pcs/min.

Packing type

Three sides sealing

Packing material

Paper

Straw specification

Out diameter

ф4-12mm


Length

150-300mm

Total power

5KW

Power supply

380V,50HZ/60HZ,3 Ph,  415V,50hz,3 Ph,

440V,50hz,3 Ph,          220V,60hz,3 Ph

Layout dimension (LxWxH)

1.9x2x1.7m

Package dimension (LxWxH)

1.72x1.1x1.8m

Net weight

530KGS
