LG-H76
Sunrise Machinery
8477800000
| Quantity: | |
|---|---|
Description:

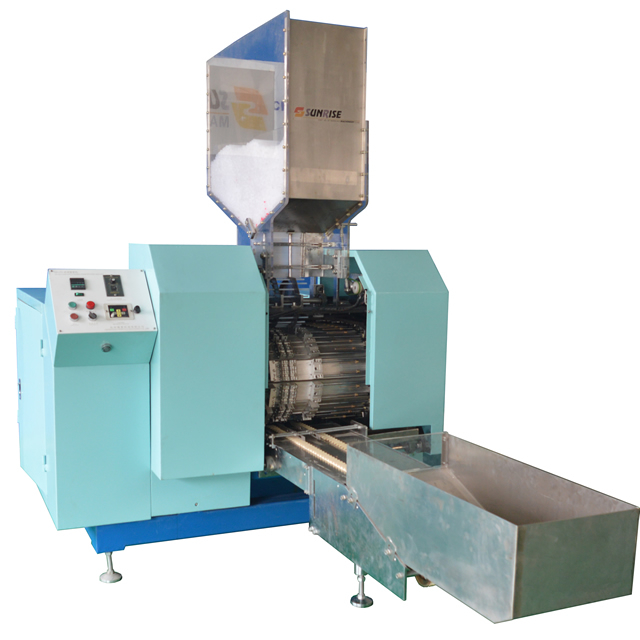

High Speed Flexible Straw Bending Machine LG-H76 is our improved third-generation flexible straw bending machine. It is designed with a double-knurling needle model, so the production capacity is greatly improved compared with the last model. At the same time, the knurling components are produced with high-precision imported processing equipment, which makes the machine stable.It is suitable for producing both PLA flexible straw and PP flexible straw.
Technical data:
| Power of driving motor | 2.2kw (control by inverter |
Capacity | 450-500pcs/min. |
| Specification of straw | Inner dia.ф4.8-5.8mm |
Wall Thickness of straw:0.15-0.18mm±0.03m | |
Length of flexible straw:210-235mm | |
Length of Flexible part : 8-12mm ( adjustable ) | |
Top section part :48-50mm | |
| The others specification can be special made | |
| Dimension | 3000x1600x2030mm |
| G.W | 2200kgs |
Description:
High Speed Flexible Straw Bending Machine LG-H76 is our improved third-generation flexible straw bending machine. It is designed with a double-knurling needle model, so the production capacity is greatly improved compared with the last model. At the same time, the knurling components are produced with high-precision imported processing equipment, which makes the machine stable.It is suitable for producing both PLA flexible straw and PP flexible straw.
Technical data:
| Power of driving motor | 2.2kw (control by inverter |
Capacity | 450-500pcs/min. |
| Specification of straw | Inner dia.ф4.8-5.8mm |
Wall Thickness of straw:0.15-0.18mm±0.03m | |
Length of flexible straw:210-235mm | |
Length of Flexible part : 8-12mm ( adjustable ) | |
Top section part :48-50mm | |
| The others specification can be special made | |
| Dimension | 3000x1600x2030mm |
| G.W | 2200kgs |
