LG-43
Sunrise Machinery
8477800000
| Quantity: | |
|---|---|
Description:

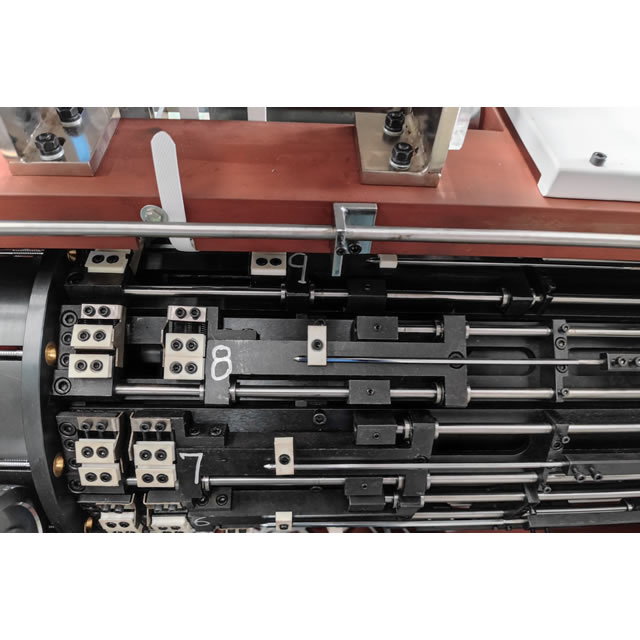

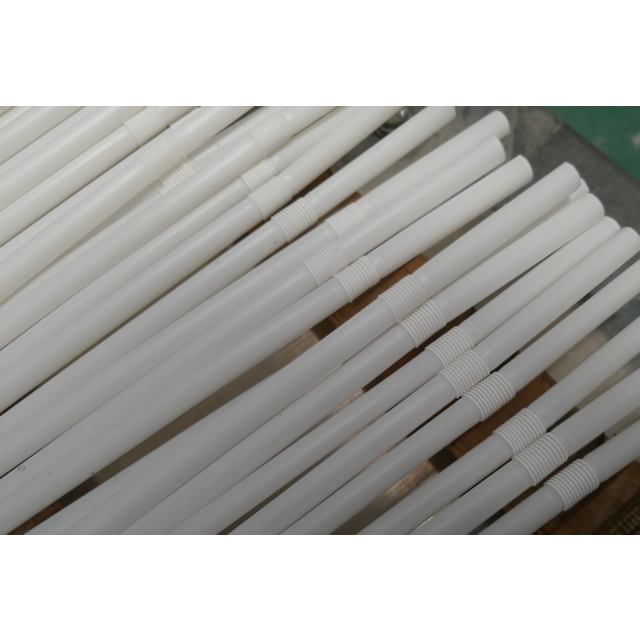

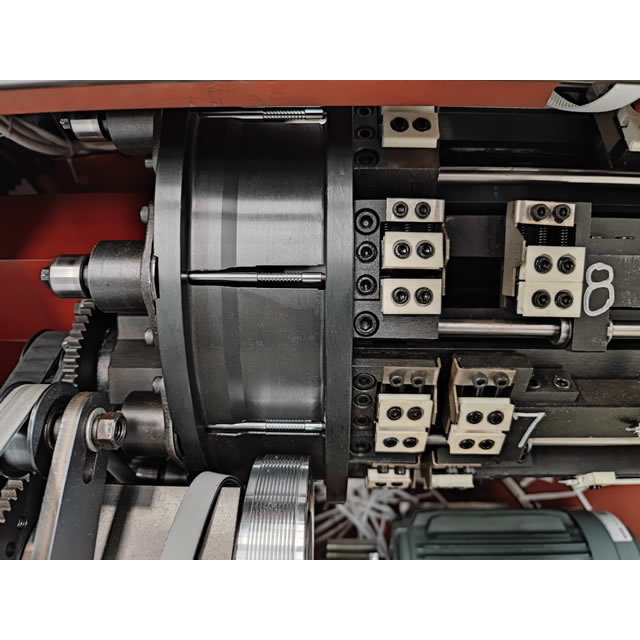

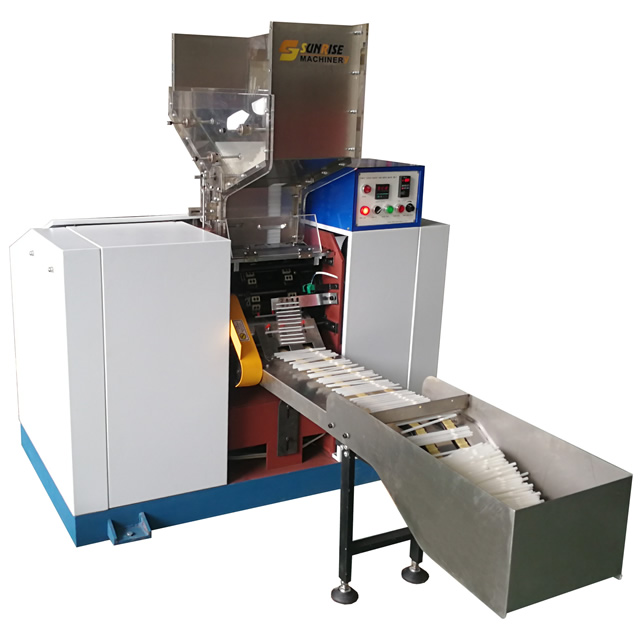

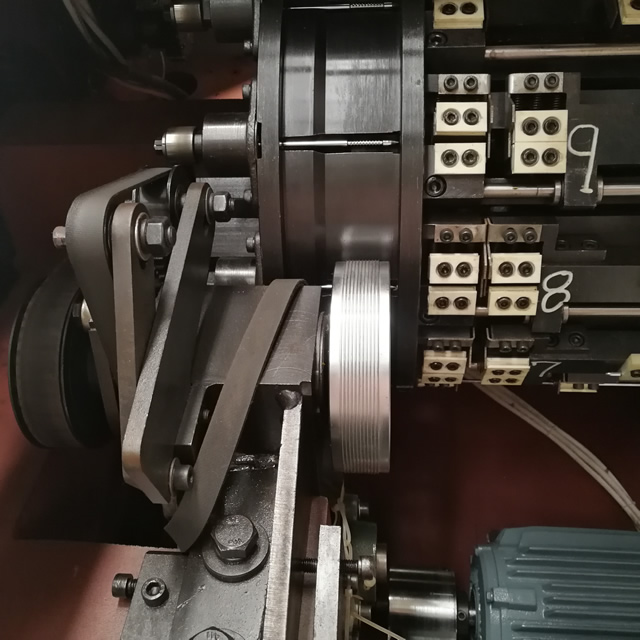

Automatic Flexible Straw Bending Machine LG-43 is our standard model, which is mainly composed of hopper, pick-up roller, knurling device, discharge frame and so on. It is suitable for processing PP straws or PLA straws from straight to flexible bending straw. The whole process from straw feeding to discharging is completed automatically.
Features:
1. High production capacity: 200-220pcs/min.
2. One labour can operate 2 machines
3. The machine is equipped with automatic counting and batch alarm.
4. It can automatically stop when there appears an error.

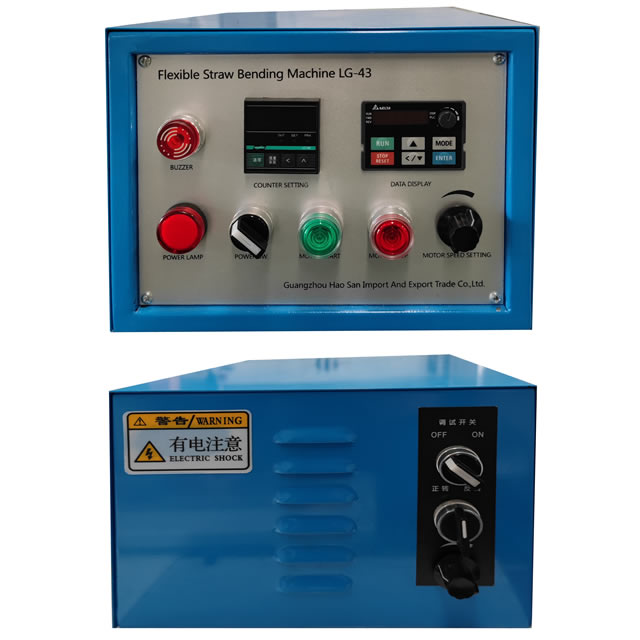

5. With watch windows, backside controller and emergency switch, it is much safer.
6. The inverter brand is DELTA
Technic data:
Model | LG-43 | |||
No. of bending groups | 12 bending groups | |||
Driving motor | 1.5kw (control by DELTA inverter) | |||
Capacity | 200-250pcs/min. | |||
Specification of straw | Inner diameter | 3.8mm | 4.8mm | 5.8mm |
Thickness of straw | 0.2±0.02mm | 0.2±0.02mm | 0.2±0.02mm | |
Length of straight straw | 130~180mm | 200~245mm | 200~245mm | |
Length of flexible straw | 110~150mm | 185~230mm | 185~230mm | |
The others specification can be special made. | ||||
Dimension of machine | 2200X1480X1690mm | |||
| Dimension of package | 1440X1190X1660mm | |||
Weight of machine | 1000kgs | |||
