LG-E11+LG-30L/ LG-51Z-3/ LG-51Z-2 +LG-H45 +LG-53+LG-55
Sunrise Machinery
8422400090
| Out Diameter: | |
|---|---|
| Length: | |
| Quantity: | |
| Quantity: | |
Description:

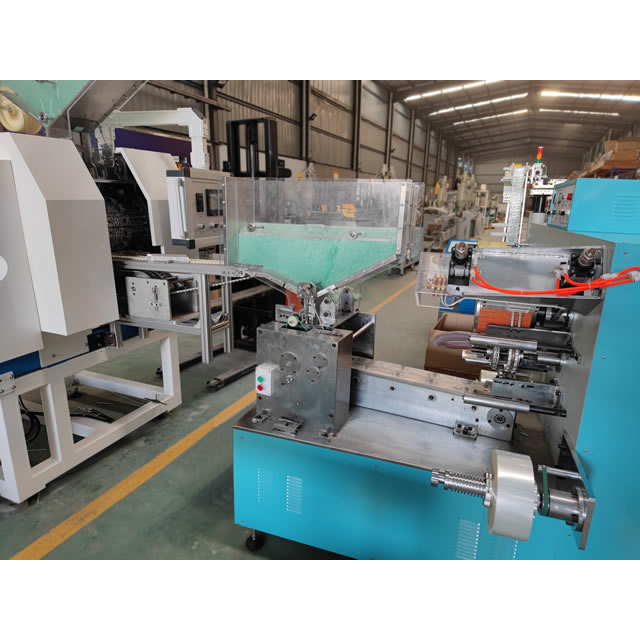

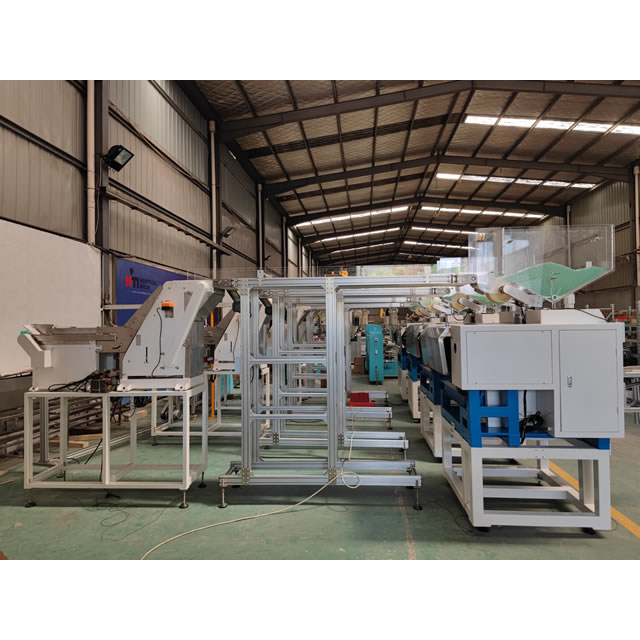

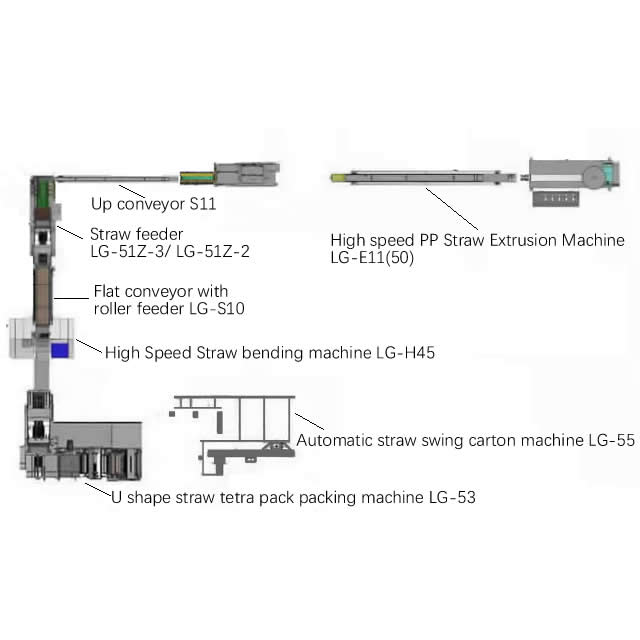

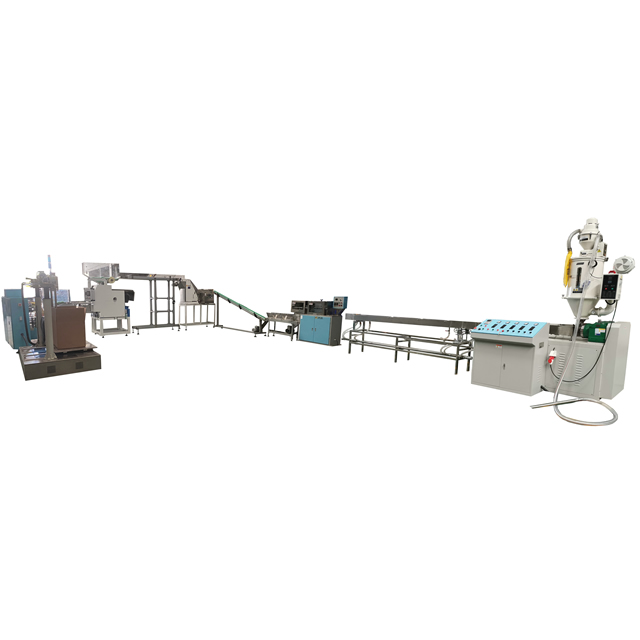

Full Automatic U Shape Straw Tetra Pack Extrusion ,Bending Online Packing Machine LG-E11 is our latest research and development in 2021. The whole line is equipped with High-speed Extrusion Machine, Automatic Straw Feeder, High-speed Straw Bending Machine, U Shape Straw Tetra Pack Packing Machine, Automatic U Shape Straw Swing Carton Machine etc. The whole process does not require manual handling, automatic feeding, and complete packaging directly And packing, the whole machine is stable and efficient.
Features:
1-High degree of automation and good stability.
2-The capacity of the whole line is more than 500 pcs/min.
High speed PLA straw extrusion machine LG-E11
Description:
PLA Straw Extrusion Machine LG-E Economic series is our standard machine for making the PLA straw.The machine are comprised by PLA straw extruder,Water cooling bath, 1 set super air knifes dryer,Straw hauling and cutter,L type gathering belt,and others accessorial machines, such as:Hopper dryer with material auto loader ,Air compressor, Water cooling chiller and Water constant temperature system.
Features:
1-It is popular model for making the PLA straw ,and more cost effective.
2-Water constant temperature system makes the quality of PLA straw.
3-Omron temperature controller makes the temperature more precise ,SMC air regulator makes the straw diameter more precise.
Technic data：
Model | LG-E11(50) |
Material Auto Loader | |
Feeding capacity | 350kgs/h |
Power | 1100W |
Static wind pressure | 1500mmAq |
Filter | Ø185X115H |
Volume of Hopper | 6L |
Inner diameter of feeding pipe | Ø38 |
Hopper Dryer | |
Capacity | 50kgs |
Power of heating | 4800W |
Power of blower | 200W |
PLA Straw Extruder | |
Model | LG-E11(50) |
Diameter of screw | 50mm |
No. of screw | 1 pcs |
No.of colour | 1 |
Type of screw | Special for PLA |
Raw material | PLA / PBAT / PHA compound resin |
L:D | 33:1 |
Section of temperature controlling | 5 |
Max.extrusion capacity | 30-32kgs/h |
Max.speed | 600-700pcs/min. |
Inner dia.of straw | φ2- φ 12mm |
Thickness | 0.1-1mm |
Length | 100-265mm |
Length tolerance | ± 0.1 -1mm |
Main motor power | 15KW |
Water Cooling Bath | |
Material of tank | SS304 |
Length | 4000mm |
No. of pulley | 3 |
Air Dryer | |
Type of air dryer | Super Air Wipe |
No. of air dryer | 1 |
Drying rate | ≥96% |
Air consumption | 394L/Min. |
Material | Aluminium alloy |
Air Compressor (Prepare by buyer) | |
Capacity | 5HP |
Power | 4KW |
Exhaust pressure | 0.8Mpa |
Displacement | 0.5m3/min |
Rotating speed | 1480rpm |
Straw Hauling And Cutter | |
Power | 0.75KWx2pcs |
Cutting speed | >750pcs/min. |
Cutting end | 90/90 , 90/60 |
L Type Gathering Belt | |
Power | 0.4KW |
Speed adjustment | Delta inverter |
Full Line Information | |
Total power | 27.5kw |
Power supply | 380V,60HZ, 3 Ph |
Layout dimension (LxWxH) | 12x2.5x3m |
Water chiller(Prepare by buyer) | 3HP/6800Kacl/h/4.4-38℃ Total power:3KW |
Up conveyor LG-S11
Power | 0.37kw |
Speed controller | Inverter |
Straw feeder LG-30L /LG-51Z-3/LG-51Z-2
Description:
The Automatic Straw Feeding Conveyor is the first automated conveyor developed and applied by our company. It solves the problem of how to connect individual machines and is the key to automation. The overall design of our equipment and safety protection adopt CE standards. We use special wear-resistant materials and improve the transmission mode of the transmission part, which fundamentally improves the stability and durability of the equipment.
Technic data：
Straight conveyor(A) | |
Model | LG-30L |
Material | Aluminum frame (Economical) |
Capacity | 1200pcs/min. |
Power | 0.37kw,220V,50hz,Single phase |
Net weight | 65kgs |
Straw feeding conveyor(B) | |
Model | LG-51Z-3 |
Capacity | 600-800 pcs/min. |
Power supply | 0.14kw,220V,50hz,Single phase |
Net weight | 108kgs |
Straw feeding conveyor(C) | |
Model | LG-51Z-2 |
Capacity | 500-600 pcs/min. |
Power supply | 0.2kw,220V,50hz,Single phase |
Net weight | 168kgs |
High Speed Straw bending machine LG-H45
Description:
This model is the latest High Speed Straw bending machine developed by our company in 2021. According to the characteristics of good forming effect, good stability, high output, and low knurling needle loss rate, it not only fills up the lack of High Speed Straw bending machine in China Blank, it is also the key equipment for us to realize the automatic connection of U shape straw.
| Power of driving motor | 2.2kw (control by inverter |
Capacity | 450-500pcs/min. |
| Specification of straw | Inner dia.ф3.8-4mm |
Wall Thickness of straw:0.15-0.18mm±0.03m | |
Length of flexible straw:150-160mm | |
Length of Flexible part : 8-12mm ( adjustable ) | |
Top section part :40-48mm | |
| The others specification can be special made | |
| Dimension | 1400*2200*1600mm |
| G.W | 900kgs |
U shape straw tetra pack packing machine LG-53 Series
Description:
This machine can bend flexible straws to U-shape and automatic filling, packing it. The sealing moulds made from casted aluminum, easy to heat and steady the temperature. The machine with correcting table to repair the straw packages, so it can produce the high quality U shape straw rolls for tetra pack.
Features:
1-Straw filling, bending, packing automatic finished at once.
2-Automatic counting and batch alarm.
3-The packing speed can be adjusted.
4-The breaker ,AC contactor and knob switch brand is CHINT
5-The inverter brand is DELTA
Technical data:
Driving motor | 2.2kw (control by inverter (DELTA) |
Capacity | 500-700pcs/min. |
Packing type | 4 sides sealing |
Raw material | BOPP film (Roll / Core dia.76mm) |
Width of film | 180mm |
Thickness of film | 20μ-30μ |
Specification of straw | Inner dia.:Ф3.8mm , thickness:0.17~0.25mm |
Length of U shape straw | 135-185mm,the others can be special make. |
Dimension of machine | 3000×1800×1600mm |
Weight of machine | 1100kgs |
Automatic Straw Swing Carton Machine LG-55
Description:
The machine can swing the U shape or I Shape straw rollers in the carton, it can automatically feed, count and swing. The feeding device can automatically move up, down, left and right according to the swing situation and capacity, and the box can also move forward and backward, which is the current replacement for manual labor.
Technic data:
Suitable straw
| Length | 90-130mm |
Suitable straw | U shape orⅠshape | |
Capacity | 500-1000pcs/min | |
Specification of the straw roller | Straw pitch | 22mm |
Max. carton size | L× W×H | 800mm×750mm×750mm (about20000-30000 pcs/carton) |
| Dimension | L× W×H | 2000mm×1170mm×1650mm (Height:1650mm-2320mm) |
Packaged dimension | L× W×H | 2200mm×1280mm×1850mm |
Power | Driving motor 1 (left and right) | 0.2kw (servo motor) |
Driving motor 2 (Front and back) | 0.75KW | |
Driving motor 3 (Up and down) | 0.75KW | |
Power source | 380V 50Hz, 3 phase | |
Weight | 800KGS | |
