Beverage packaging facilities face severe margin pressures today. Plant managers constantly look for ways to optimize high-volume lines. Manual or outdated bending processes often create massive production bottlenecks. These older methods lead to higher defect rates and excessive labor demands. To solve this, facilities rely on modern automated equipment. A flexible straw bending machine acts as the critical bridge between extrusion and packaging. It transforms straight plastic tubes into articulating straws through continuous, high-speed automation.
This article provides plant managers and procurement leads an evidence-based breakdown. You will learn exactly how these machines operate. We will explore the engineering factors driving their throughput and speed. Finally, we expose the hidden commissioning risks you must evaluate before making a purchase.
Continuous Automation: Modern bending machines process straight tubes into flexible formats seamlessly, eliminating manual transfer steps.
Scalable Output: Equipment tiers range from baseline speeds (250 pcs/min) to heavy-duty, high-speed models (up to 1,000 pcs/min) that support inline packaging integration.
Strict Specifications: Procurement requires exact upfront data; parameters like tube diameter and top-section length are physically fixed per machine and cannot be adjusted post-installation.
Commissioning Realities: Stable operation relies heavily on precise alignment of 12-axis molding structures; routine maintenance is mandatory to prevent batch failures from single-clamp breakages.
Disconnected production lines drain factory resources rapidly. Semi-automatic handling requires workers to physically move batches of straight straws from extruders to bending stations. This transfer process introduces severe inefficiencies. Human intervention increases the risk of product contamination significantly. It also degrades overall bend quality because handling temperatures fluctuate before the plastic sets. Furthermore, relying on human labor drives up operational overhead.
Transitioning to a fully automatic straw bending machine eliminates these chaotic transfer steps. Automation standardizes every single output. Modern machines utilize continuous rotation systems to maximize throughput. These systems typically process 12 straws simultaneously along a rotating drum. By locking into this continuous rhythm, facilities drastically lower unit processing costs. You maintain strict food safety compliance because operators never touch the raw product. The entire transition from straight cylinder to articulating tube happens in a closed, controlled loop.
Raw speed means nothing without mechanical reliability. Engineers design modern bending machines to eliminate friction and prevent jamming. Three core mechanisms dictate how fast and accurately a machine can operate.

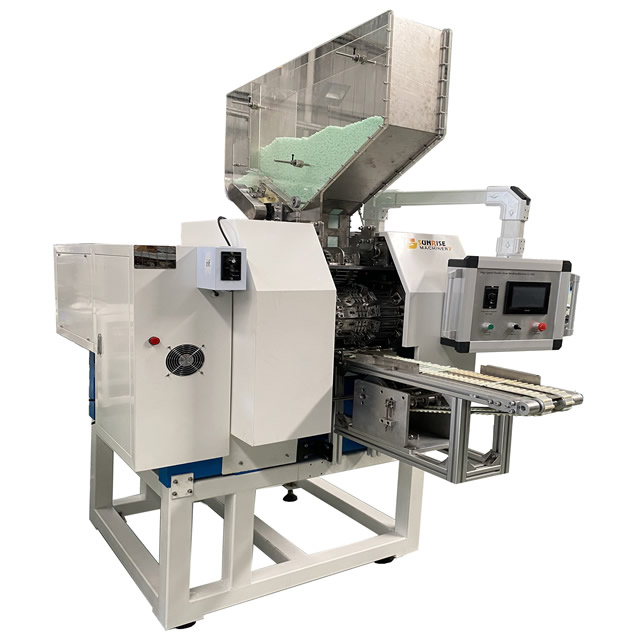

Jam-Free Feeding Systems: Manual loading slows down production lines. Automated hopper systems replace human hands completely. They use specialized brush feed designs and oscillation baffles. These components continuously align straight tubes. They ensure a smooth, jam-free loading process directly into the main rotary drum.
Cam-Driven Corrugation and Rotary Dies: The machine must guide straws perfectly. Upgraded models feature cam-driven corrugation systems. Manufacturers often use aluminum alloy molds here. Aluminum ensures lightweight, high-speed rotation without adding excess motor strain. Linear motion guides absorb operational shock. They provide the stability needed to process hundreds of units per minute without vibrating out of alignment.

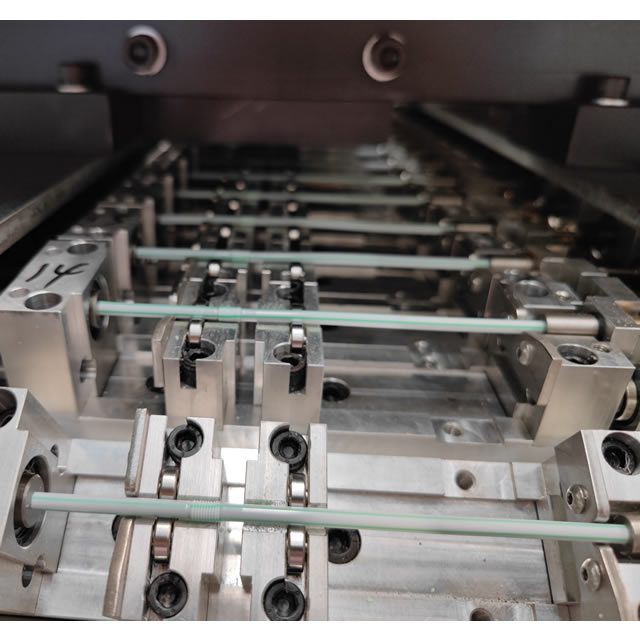

Mechanical Hands and Compression: This represents the actual bending event. Mechanical hands securely grip the straws. Specialized forming pins then press into the plastic. They create the exact number of corrugations required. Industry standards dictate 10 or 11 teeth per flexible section. The mechanical compression guarantees absolute consistency across millions of units.
Procurement teams must evaluate output metrics carefully. Buying too much capacity wastes capital, while buying too little starves downstream packaging lines. Equipment tiers generally fall into two distinct categories.
Feature | Baseline Models | High-Speed Models |
|---|---|---|
Output Speed | 200–350 pcs/min | 600–1,000 pcs/min |
Power Consumption | Approx. 1.5 kw | Approx. 2.2 kw |
Chassis Build | Standard framing | Heavy-duty chassis for stability |
Standalone speed does not equal true factory efficiency. The real advantage lies in inline integration. Advanced models connect directly to extrusion lines upstream. They also link seamlessly to single or multi-pack packing machines downstream. This integration creates a "lights-out" automated factory floor. Straws move from melted plastic to wrapped bundles without any manual intervention.
You must also consider compatibility variances. Baseline machines focus exclusively on standard 5-6mm drink box straws. However, specialized equipment exists for niche beverage markets. If you produce boba or smoothie straws, you need wider clearance. Some heavy-duty variants can accommodate diameters up to 12mm. Always verify these maximum clearances before making a final selection.
The beverage industry faces immense pressure to abandon standard PP plastics. Global regulations force a pivot toward biodegradable alternatives. Compostable PLA (Polylactic Acid) and marine-degradable PHA (Polyhydroxyalkanoates) now dominate new product requests. This shift introduces significant manufacturing hurdles.
Processing bio-materials involves strict thermal and viscosity realities. A standard straw bending machine often struggles here. PLA and PHA have extremely narrow temperature processing windows. They possess distinct tensile properties compared to flexible PP. If the forming pins strike the material at the wrong temperature, the bio-plastic shatters or warps. It does not stretch easily.
Material Type | Processing Window | Bending Challenge |
|---|---|---|
Standard PP | Wide | Highly flexible, minimal tearing risk. |
PLA (Compostable) | Narrow | Brittle when cold; requires precise mold temperatures. |
PHA (Marine-degradable) | Extremely Narrow | Highly sensitive to friction heat; cooling is critical. |
Buyers need rigorous evaluation criteria for new materials. You must verify the specific capabilities of the forming systems. Check if the integrated cooling mechanisms are rated for precise PHA or PLA parameters. Superior cooling prevents material deformation during the aggressive bending phase. Ask vendors for empirical test run data using your exact material blend.
Purchasing automated equipment requires extreme attention to detail. Many plant managers learn about strict machine limitations only after installation. You must understand the "One Machine, One Size" rule. Tube diameter is strictly fixed. The top length of the straw is completely immutable once engineers set the mold. You cannot adjust these physical parameters later. You must provide accurate wall thickness data during the initial RFQ phase. Failure to do so results in useless equipment.

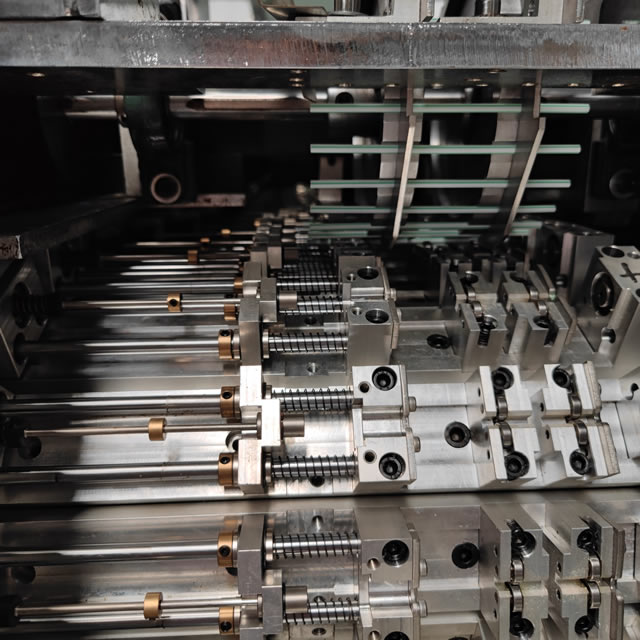

You must also acknowledge the fragility of the 12-axis system. Maintain a skeptical, realistic tone regarding daily operations. The machine uses 12 separate sets of molding structures. Each set utilizes dual plastic clamps. These clamps require meticulous alignment down to the millimeter. A single broken clamp will ruin entire batches instantly. A loose screw on one axis causes asymmetrical corrugations.
Maximizing machine efficiency depends entirely on maintenance and SOPs (Standard Operating Procedures). Your facility needs strict protocols. Operators must perform regular dust and plastic shaving removal. Scheduled visual inspections prevent catastrophic part failures. Continuous lubrication is non-negotiable. Only experienced mechanical engineers should handle complex mold alignments. Treat the machine as a precision instrument rather than a blunt factory tool.
An automated bending system transforms raw manufacturing potential into tangible output. It improves factory efficiency through much more than raw speed. True value comes from seamless inline integration, highly reliable corrugation mechanics, and the total elimination of manual touchpoints. By upgrading your floor, you protect your margins against rising labor costs.
Decision-makers must take proactive next steps. First, audit your current production speeds to identify exact bottlenecks. Next, finalize your exact straw dimensions, including wall thickness and top-length, before contacting suppliers. Finally, demand verifiable proof of reliability. If you plan to process bio-plastics, require video evidence of PLA or PHA compatibility. Rigorous vetting ensures your new equipment performs precisely as promised.
A: These machines are typically optimized for wall thicknesses between 0.10mm and 0.18mm. However, exact processing tolerances depend heavily on the manufacturer's specific die specifications and the material used.
A: No. The corrugation location and tube diameter are physically engineered into the specific molds and the rotary drum. If you need to process different diameters or top-lengths, you require an entirely different machine.
A: Industrial models feature multiple fail-safes to protect production. These include automatic batch counting, preset alarms for downstream packaging readiness, variable frequency drives for stable power, and automatic brake functions during sudden power disruptions.
