Upgrading from straight straws to articulated ones requires a dedicated secondary process. A straw bending machine is a highly synchronized mechanical asset. Choosing the wrong one leads to endless calibration issues, high scrap rates, and production bottlenecks. Manufacturers often underestimate the leap from standard extrusion to precision forming. Unlike primary extrusion, bending relies on precise mechanical linkages, rotary drums, and forming dies. These complex internal components must work together to create the "accordion" hinge without compromising the tube's structural integrity.
To make a confident, bottom-of-funnel investment, buyers must look beyond initial price tags. You need to evaluate real-world production speeds, long-term operational costs, and exact product specifications. Purchasing decisions driven solely by face-value metrics often result in factory floor disasters. This comprehensive guide will help you navigate the mechanical nuances, size your equipment correctly, and vet suppliers effectively so your production line runs smoothly.
The 80/20 Sizing Rule: Optimize your machine choice for the core 80% of your production volume rather than chasing a machine that claims to handle every edge-case diameter.
Nominal vs. Real Speed: Evaluate output based on sustained shift capacity (factoring in changeover times) rather than theoretical maximum speeds.
Quote-Ready Clarity: You must lock in your exact straw diameter, top section length, and corrugated teeth count before requesting supplier quotes.
Mechanical Expertise is Mandatory: Operating these machines requires a mechanically competent technical team due to the complexity of the rotary linkages.
Requesting broad quotes without defined specifications leads to inaccurate pricing and mismatched equipment. Many factory owners approach suppliers asking for a machine capable of producing "various flexible straws." This approach immediately signals a lack of readiness. You must document exact physical parameters before requesting a quote.
Emphasize one critical engineering reality: manufacturers build one bending machine for one specific diameter. Quick changeovers for different diameters are essentially a myth in this niche. To change a diameter, operators must swap out the main rotary drum and realign every mechanical clamp. This process takes hours and requires deep technical expertise. Instead of seeking universal machines, dedicate a single machine to your most popular diameter.
You must pre-determine the top straight section length before placing an order. Once the manufacturer mills the forming dies and installs the feeding mechanisms, you often cannot adjust this top length. Additionally, specify the number of corrugated teeth. Industry standards dictate 10 or 11 teeth for optimal flexibility. Fewer teeth cause the straw to snap back to a straight position, while too many weaken the wall structure.
Wall thickness directly impacts the creasing process. If the wall is too thin, the creasing die will puncture the plastic. If it is too thick, the accordion fold will not compress properly. Furthermore, material chemistry changes everything. You must tune the machine differently for standard Polypropylene (PP) versus rigid Polylactic Acid (PLA). PLA is brittle. It requires specialized mold temperatures and slower compression speeds to avoid micro-fractures during bending.
We advise buyers to size and configure equipment for products making up 80% of their revenue. If standard 6mm juice straws drive your business, build your line around that exact spec. Do not compromise your main production efficiency to accommodate a rare 8mm smoothie straw order.
Best Practice Checklist for Quote Requests:
Define exact outer diameter (e.g., 6.0mm).
Specify material type (PP, PLA, etc.).
Provide exact top and bottom lengths.
Confirm desired tooth count (10 or 11).
Buyers often calculate return on investment based on theoretical maximum speeds. This error leads to severe operational shortfalls. An automatic straw bending machine looks impressive on a spec sheet, but factory reality introduces friction.
Establish a realistic industry baseline. A reliable machine typically processes 200 to 300 pieces per minute. This translates to roughly 15,000 pieces per hour. Pushing equipment beyond 300 pieces per minute often increases defect rates. At extreme speeds, mechanical clamps fail to grip the plastic securely, causing misalignment during the creasing phase.
Continuous maximum speed rarely translates to shift-end output. Nominal speed represents how fast the motor spins under ideal laboratory conditions. It assumes perfect material feeding, zero jams, and no operator breaks. Real-world production never mirrors laboratory conditions.
To forecast your actual output, you must apply a pragmatic formula:
Real Efficiency = Nominal Speed – (Changeover Time + Routine Jam Clearance + Maintenance Downtime)
Consider the following chart comparing theoretical versus practical yields over a standard 8-hour shift:
Metric | Theoretical Scenario | Real-World Scenario |
|---|---|---|
Advertised Nominal Speed | 250 pcs/min | 250 pcs/min |
Total Shift Minutes | 480 mins | 480 mins |
Downtime (Jams, Refills) | 0 mins | 45 mins |
Actual Operating Time | 480 mins | 435 mins |
Total Shift Output | 120,000 pieces | 108,750 pieces |
We strongly warn against buying a bender severely outpacing or lagging behind your primary extrusion line. If your extruder produces 20,000 straws per hour and your bender only handles 12,000, you will face massive staging bottlenecks. You will need extensive warehouse floor space just to store work-in-progress inventory. Match your capacities carefully.
Inexperienced buyers look at the exterior housing of the machine. They ignore the critical internal mechanisms dictating lifespan and defect rates. A flexible straw bending machine is essentially an intricate clockwork of cams, gears, and dies.
Evaluate how straight straws feed from the top hopper. Gravity-fed systems rely on simple physics, making them cost-effective. However, they can jam if static electricity builds up on the plastic tubes. Automated staging systems use micro-vibrations and pneumatic pushes to ensure a continuous, singular flow into the rotary drum. Choose automated feeding if you process highly static materials like PLA.

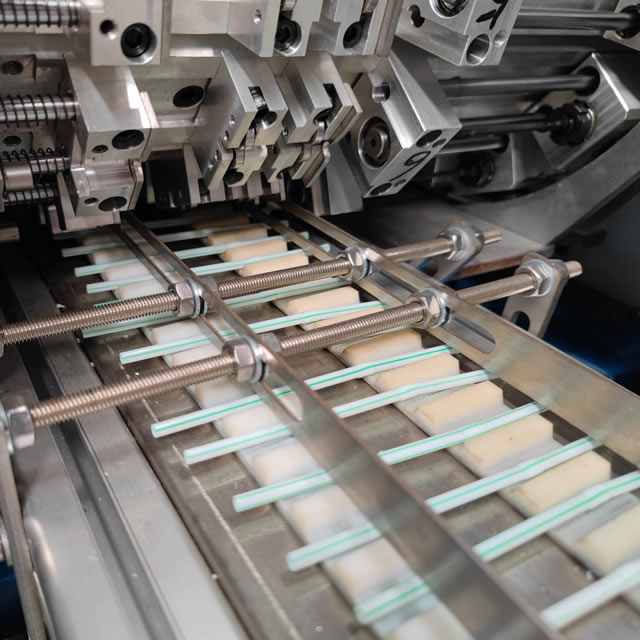

The main rotary drum acts as the heart of the machine. The precision of the mechanical hands—or clamps—determines success. These clamps grab the straight straw and carry it through the die stations. If the clamps apply too much pressure, they deform the tube before bending even begins. If they apply too little, the tube slips, resulting in crooked accordion folds.
Bending involves a strict dual-step process. First, the creasing die presses thin grooves into the plastic. Second, mechanical pushers compress the tube linearly to form the accordion fold. Machined steel quality dictates mold lifespan. Cheap steel degrades quickly under continuous friction, leading to dull creases and leaky straws. Ask suppliers about the Rockwell hardness of their forming dies.
Robust servos and linkages ensure synchronized timing. Because bending is a highly mechanical, repetitive action, vibration tolerance is non-negotiable. A lightweight frame will rattle. This rattling misaligns the micro-tolerances required for perfect clamping. Inspect the machine's base plate. Heavier, cast-iron or thick steel frames absorb operational vibrations, extending the life of all moving parts.
Common Mistakes to Avoid:
Ignoring frame weight. A machine weighing under 500kg often lacks the rigidity needed for vibration absorption.
Accepting unhardened steel dies. Always demand hardened alloy steel for high-wear creasing components.
Overlooking static control. Failing to install anti-static bars near the feeding hopper causes immediate jamming.
Fixating on the initial purchase price ignores long-term operational costs and vital facility requirements. Budgeting solely for the machine invoice leaves manufacturers severely underfunded for actual production.
A cheaper machine generally features lower-grade bearings and unhardened cams. High vibration will wear out forming dies rapidly. Over a three-year horizon, a cheap machine costs significantly more due to continuous spare part purchases and unplanned downtime. Investing upfront in a heavy-duty chassis and premium servos drastically reduces your defect rate and maintenance frequency.
Warn your facility managers about hidden infrastructure costs. These machines do not simply plug into a wall outlet and run. You need high-capacity industrial air compressors to drive pneumatic components reliably. If your factory air supply drops in pressure, pneumatic pushers will fail to compress the straw fully. This creates defective, half-bent products. You also need dedicated power conditioning to protect sensitive servo motors from voltage spikes.
We must be completely transparent: bending machines are heavily mechanical. They lack the simple "plug-and-play" digital interfaces found on basic packaging wrappers. A factory without operators who understand mechanical linkages, cam timing, and spatial tolerances will struggle immensely. You must factor extensive technical training into your startup budget. Expect to pay premium wages for mechanics who can diagnose rotary drum misalignments by sound and sight.
Even the best machine fails without proper installation, thorough training, and a reliable spare parts supply chain. Choosing the right engineering partner ensures your equipment reaches its promised lifecycle.
Global suppliers offer different distinct advantages. European machines traditionally offer exceptional micro-precision and heavy-duty lifespans, but they require massive capital investment. Chinese manufacturers currently dominate the market by offering aggressive cost-efficiency, rapid lead times, and highly customizable frame builds. Evaluate which geographic strength aligns with your business model.
Do not finalize any purchase order without getting written answers to the following operational questions:
"What is the guaranteed lifespan of the creasing molds before tolerance loss occurs?"
"Do you provide comprehensive on-site commissioning and mechanical training for our operators?"
"What is your guaranteed lead time for critical proprietary replacement parts?"
"Can you provide video proof of the machine running our specific material continuously for one hour?"
Ensure your chosen supplier holds relevant CE or ISO certifications. These documents prove consistent manufacturing standards. A CE mark indicates the machine meets strict European safety and environmental directives, particularly regarding emergency stops and electrical shielding. ISO certification shows the factory maintains a disciplined quality management system, reducing the risk of receiving a "lemon."
Selecting the ideal flexible straw bending machine requires a realistic assessment of your factory floor. You must acknowledge your team's technical capabilities, define exact product dimensions early, and prioritize structural frame rigidity over a superficially low price. Focus heavily on heavy-duty rotary drums, precision creasing dies, and automated feeding mechanisms to secure consistent yields.
As a next-step action, gather your production team to finalize your target straw diameter, top-section length, and tooth count. Once you lock in these specifications, reach out to certified suppliers for a technical consultation. With exact numbers in hand, you can secure accurate quotes, map out facility requirements, and build a highly profitable secondary forming line.
A: Technically possible on some highly advanced models, but highly impractical. Changing the main rotary drum and clamping mechanisms is labor-intensive and causes massive downtime. Industry best practice is dedicating one machine per diameter to maintain high production efficiency.
A: PLA often requires specific temperature and pressure adjustments due to its brittleness compared to PP. Paper straws require entirely different mechanical processes to bend without tearing the glued layers. Always verify material compatibility with the manufacturer before purchasing.
A: Beyond the primary extrusion machine used to supply the straight straws, a robust industrial air compressor is usually required. This compressor handles the demanding pneumatic elements of the automated feeding, clamping, and discharge systems efficiently.
